Machine Payments Protocol (MPP)

This quickstart will guide you through implementing an Arbitrum-specific payment method plugin for the mppx library, which implements the Machine Payments Protocol (MPP). MPP defines a generic challenge → credential → settlement flow for payments between two parties:

  • Server: the merchant/payee (the one wants to get paid)
  • Client: the payer (a user or AI agent)

mppx itself is payment-method-agnostic. This plugin provides the methods for settling payments on Arbitrum One or Arbitrum Sepolia using ERC-20 stablecoins (currently USDC).

Core concepts​

The client (payer) never broadcasts a transaction and never pays gas.

  1. The merchant requests payment (issues a challenge).
  2. The payer signs an EIP-712 typed-data authorization offchain—no gas, no prior onchain approval is needed.
  3. The merchant's server submits the signature onchain, completing the fund transfer. The merchant pays for the gas.

This is exactly the "402 Payment Required"—style flow you'd want for machine/agent commerce: an HTTP request hits a paywalled endpoint, the agent signs a payment authorization, and the server settles it atomically before serving the response.

It supports two settlement mechanisms:

TypeOnchain mechanismSupports splits?Need prior approval?
authorizationEIP-3009 transferWithAuthorization (native to USDC)❌❌
permit2Uniswamp's Permit2 permitWitnessTransferFrom✅ (pay multiple recipients in one transaction)✅ payer must pre-approve Permit2 on the token once
Other options

transaction and hash credential types are stubbed but intentionally not implemented—these have weaker challenge-binding and invite fraud potential.

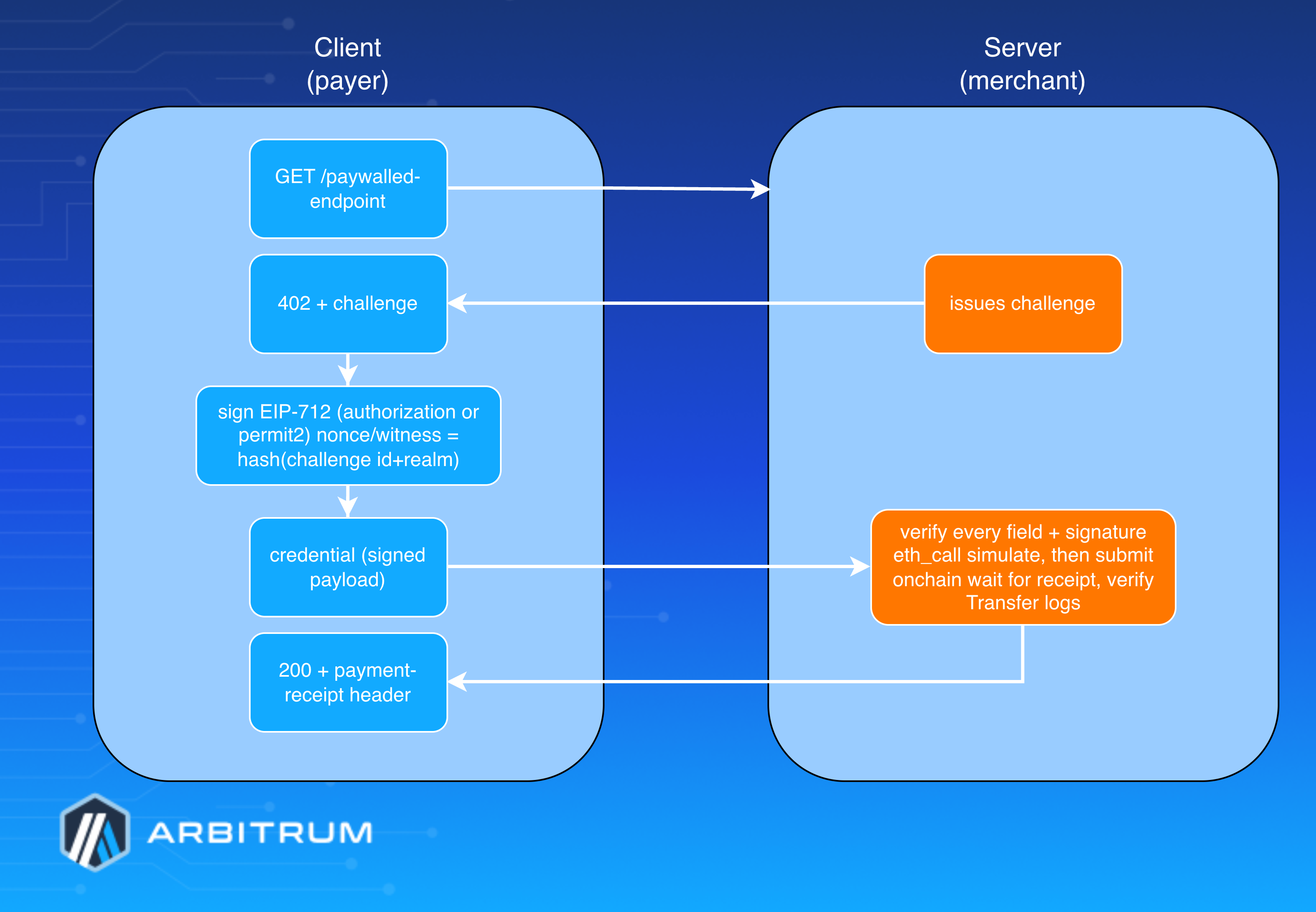

MPP Flow

MPP Flow

What the client does​

charge() returns a Method.toClient handler. In createCredential:

  1. Validates the challenge’s chainId is supported and unexpired.
  2. Checks the payer’s token balance onchain (balanceOf).
  3. Branches on credentialTypes:
  • permit2 (or undefined): builds permitted/transferDetails arrays (handling splits, with the primary recipient pushed to the front), derives the nonce from a challenge hash, and signs the Permit2 witness typed-data.
  • authorization: derives nonce = keccak256(challenge.id, challenge.realm) for challenge-binding (anti-replay), looks up the token’s EIP-712 domain from the local erc3009Tokens registry (src/default.ts — not an on-chain query), and signs the TransferWithAuthorization struct.
  1. Returns Credential.serialize(...). No transaction is broadcast.

What the server does​

charge() returns a Method.toServer handler. In verify(credential, request), it independently re-derives and re-checks every value the client claimed (recipient, amount, deadline, nonce/challenge-hash, signature via verifyTypedData, balance, and, for permit2, the Permit2 allowance and split amounts). Then it:

  1. Simulates the transaction with eth_call (so a bad credential doesn’t waste gas).
  2. Submits transferWithAuthorization (authorization) or permitWitnessTransferFrom (permit2) from the merchant’s account.
  3. waitForTransactionReceipt, then verifies the emitted Transfer logs match the expected recipients/amounts.
  4. Returns an mppx Receipt: method: "arbitrum", status: "success", timestamp, reference: txHash.

How to implement it — server (merchant) side​

mppx has an Express adapter:

import express from 'express';
import { Mppx } from 'mppx/express';
import { privateKeyToAccount } from 'viem/accounts';
import { charge } from '@arbitrum/mpp/server';
import * as defaults from '@arbitrum/mpp/default';

const account = privateKeyToAccount(process.env.SERVER_PRIVATE_KEY as `0x${string}`);
const app = express();

const mppx = Mppx.create({
  methods: [
    charge({
      recipient: account.address, // where funds land
      currency: defaults.TOKEN_CONTRACTS.USDC_ARBITRUM_SEPOLIA, // which token
      methodDetails: { chainId: 421614, decimals: 6 },
      account, // pays gas to settle
    }),
  ],
  secretKey: process.env.SERVER_PRIVATE_KEY,
});

// Gate an endpoint behind a charge:
app.get(
  '/authorization',
  mppx.charge({
    amount: '1000', // raw units: 1000 = 0.001 USDC (6 decimals)
    description: 'My favorite food',
    methodDetails: { chainId: 421614, credentialTypes: ['authorization'] },
  }),
  (req, res) => res.json({ data: 'authorization worked!' }), // only runs after payment settles
);

app.listen(3000);
  • Set credentialTypes: ['permit2'] instead to use Permit2, and add a splits: [...] array to pay multiple recipients in one transaction.
  • ⚠️ Amount is in raw token units, not human-readable—human-readable decimals aren’t supported yet.

How to implement it - client (payer) side​

import { Mppx } from 'mppx/client';
import { privateKeyToAccount } from 'viem/accounts';
import { charge } from '@arbitrum/mpp/client';

const account = privateKeyToAccount(process.env.CLIENT_PRIVATE_KEY as `0x${string}`);

const mppx = Mppx.create({
  methods: [charge({ account, chainId: 421614 })],
});

// mppx intercepts the 402, signs the challenge, retries automatically:
const response = await mppx.fetch('http://localhost:3000/authorization');
const data = await response.json();
console.log(`Response: ${data}`) // Payment response ('authorization worked!')
const receipt = response.headers.get('payment-receipt'); // base64-encoded mppx Receipt
console.log(Buffer.from(receipt!, 'base64').toString('binary')); // Transaction information including hash

Run the bundled example locally​

pnpm install

# .env (copy from .env.example)
CLIENT_PRIVATE_KEY=0x...   # this wallet needs USDC on Arbitrum Sepolia
SERVER_PRIVATE_KEY=0x...   # this wallet needs ETH (gas) on Arbitrum Sepolia

# Terminal 1
npm run server   # tsx test/server  → listens on :3000

# Terminal 2
npm run client   # tsx test/client  → hits /authorization, signs, settles

Funding requirements​

  • Server needs ETH on the chain (it pays gas to submit the settlement transaction).
  • Client needs USDC on the same chain (the funds being pulled).
  • For Permit2, the client must first approve the Permit2 contract (0x000000000022D473030F116dDEE9F6B43aC78BA3) as a spender on the USDC token—Permit2 can’t move tokens it hasn’t been allowed to.

Other useful commands​

npm test          # vitest run (includes anvil-fork e2e tests under test/e2e)
npm run build     # rm -rf dist && tsc → dist/  (clean publishable build)
npm run lint      # eslint --fix
npm run format    # prettier --write

E2E tests fork a live network via @viem/anvil (set FORK_URL in .env) so they exercise the real USDC and Permit2 contracts without spending real funds.

Current limitations​

  • Only USDC on Arbitrum One/Sepolia is registered. Adding a token = adding its address + EIP-712 name/version/chainId there.
  • amount is raw units only—no human-readable decimal conversion yet.
  • For authorization, the validBefore expiry is trusted from the server’s challenge; a far-future expiry theoretically widens the window in which an unsubmitted authorization could be settled late. (Note: the EIP-3009 nonce is challenge-bound—keccak256(id, realm) — and single-use onchain, so a literal replay of an already-settled authorization is blocked once the nonce is consumed.)
  • transaction and hash credential types are intentionally unimplemented (weak challenge-binding).
  • Status is v0.1.0 — early/experimental.
